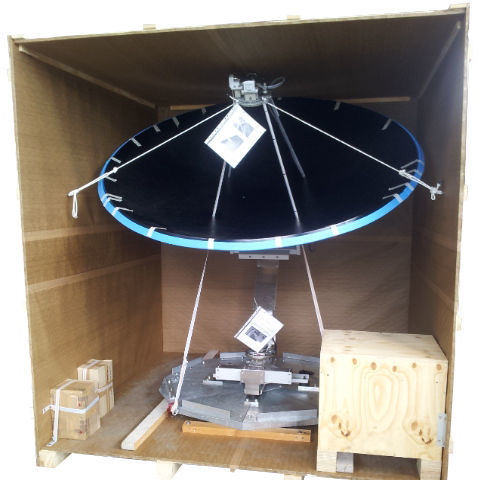

C-band antenna 200

for shipsradomeparabolic

Radome diameter 2,80m Parabolic dish one piece/six pieces Above deck equipment mass 170 kg without radome Minimum E.I.R.P. 36,5dBW for Ku band; 37 dBW for C band The minimum E.I.R.P. levels are specified for minimum quality TV picture at receiver threshold for C/N = 7 dB Down converter Ku-LNB Quattro, noise figure, 0,2 dB typical Polarization Ku linear Skew -90° +90° Down converter C band 17K Polarization band C circular left and right STABILIZATION: Stabilization type Active on three axis, with inertial reference and conical scan tracking Motors Type brushless servomotors Operation angles Tilt ± 30° Ship Movement Pointing accuracy 0,1° Roll ± 30° in 6 sec Pitch ± 30° in 6 sec RADOME Type 4 pieces plus base plate Diameter 2,8 m Material foam/fiberglass sandwich Attenuation No rain 0,2dB ENVIRONMENT: Above deck Humidity up to 100% at +40°C Spray and icing Radome protected Protection water splash resistant from every direction Wind 130 Knots Corrosion metal part hot dip galvanized; allcomponents selected for marine usage. Vibration Meets Inmarsat requirements
