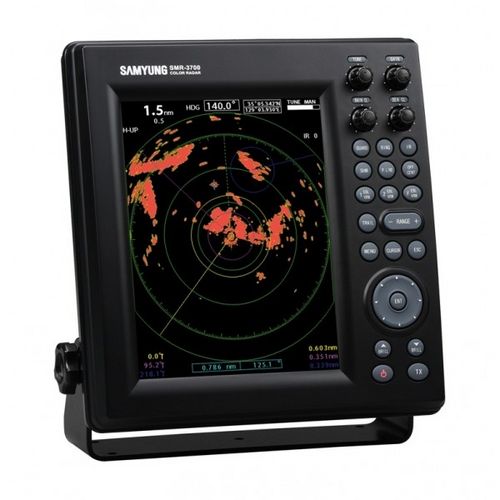

Ship radar SMR-3700

ATAcolor

Features • Superior ability to display closed range targets. • Able to interface with AIS and target display. • Able to Zoom-In the special target area for use’s selection. • Able to choose brightness of color in 10 levels for navigation at night. • Can choose the screen color within white, yellow, green. • Adopted 8 directions key to make cursor move with speed. • Can set up the range in many ways the user needed. • Intermittent Tx mode : can operate with low electric consumption. • Can move screen center point and observe the long distance of the desired direction. • Display parallel line : Can maintain certain distance between other vessel. • Setting-up warning zone for invasion and separation in various method Specifications ▶ ANTENNA • Type : dome-type antenna • Output power : 4KW • Tx frequency : 9410±30MHz • Revolution : approx. 24rpm • Beam width : Horizontal 4.0° / Vertical 25° • Synchronism method : Automatic / Manual switch over • Operation temperature : -25℃~+55℃ • Relative humidity : 35% ~ 95% • Relative wind velocity : 51.5 m/sec(100 Knots)
