GPS positioning system GR-5013
GNSSreceiver

GPS positioning system
GPS positioning system
Add to favorites
Compare this product


Characteristics

Type
GPS, GNSS
Other characteristics
receiver

Description

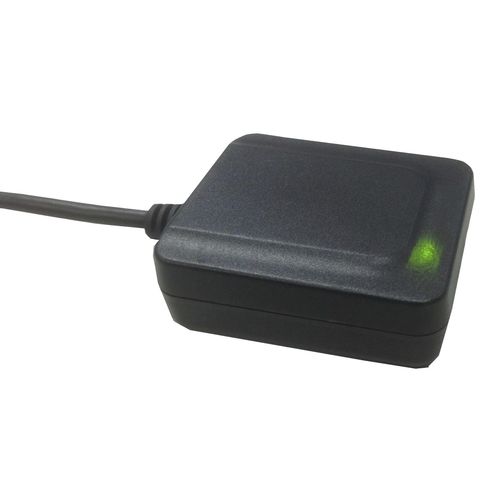

GR-5013 is an easy to use, ultra-high performance, low power, industrial grade GPS receiver. It supports multiple satellite positioning systems – GPS, GLONASS, QZSS and SBAS. The IP67 waterproof feature makes this cable receiver an ideal solution for outdoor applications. Our experienced design fully exhibits the excellent performance of MT3333 chip. It works in GPS signal difficult environment, provides fast acquisitions and excellent tracking performance. Applications  High-precision clock/timing  Automatic vehicle location  Vehicle navigation device  Timing (GPS clock, FEMTO cell, traffic lights etc)  DGPS (RTCM SC-104) * Features  High performance: -165dBm+ tracking sensitivity  Low power: 29mA at continuous tracking (RS232)  GPS/QZSS/SBAS support  Supported SBAS: WAAS/EGNOS/MSAS/GAGAN  12 multi-tone active interference cancellers  Indoor/outdoor multi-path detection & compensation  Up to 10Hz update rate*  Backup battery support for faster position fix  LED for position fix indication  IPX7 Waterproof  Built-in magnet  Industrial operating temperature range: -40 ~ 85℃ Notes * Some features need commands programmed by customers

Catalogs

GR-5013
GR-5013
2 Pages
