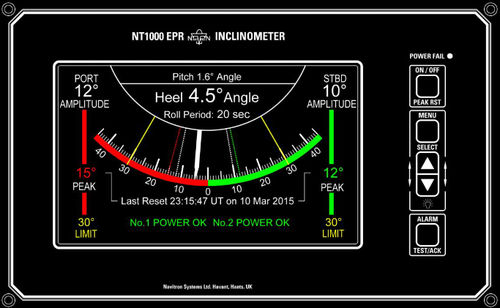

Electronic inclinometer NT1000 EPR

Designed and developed by Navitron Systems Ltd. to meet the requirements of MSC. 363(92) the NT1000 Electronic Pitch & Roll (EPR) Inclinometer is a robust and accurate instrument which is fully compliant with IMO recommendations to all Governments that Inclinometers not inferior to this specification should be installed to SOLAS vessels with effect from 1st July 2015. The traditional mechanical “pendulum” type of heel measuring devices can provide reasonably accurate indications of angle, but this is largely confined to static situations whereas in a seaway, pendulum mass and inertia will invariably result in significant errors. In addition to the mechanical limitations, further constraints include the inability to communicate with VDRs and BAMS (Bridge Alert Management Systems) etc. Finally, the mechanical pendulum offers no simple solution for alerting watch personnel to the development of potentially dangerous situations geared to instability based on increasingly adverse heel angles and roll periods. Accordingly, the NT1000 EPR is fully Type Approved by Germanischer Lloyd (DNV GL) and may be installed with single or multiple colour display unit(s) to provide real time Pitch and Roll monitors for watch personnel in addition to recorded graphical displays or roll behavior over the last 3 minute and 30 minute periods. Serial Data input/output facilities enable the NT1000 EPR Inclinometer to send data to VDR and to communicate bi-directionally with BAMS etc.
