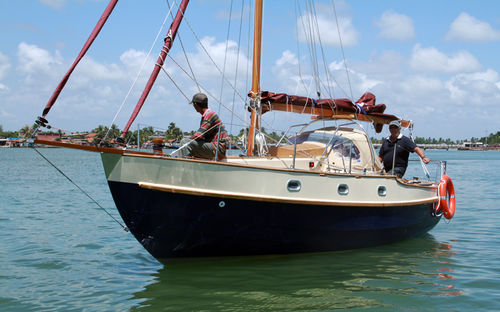

Cruising sailboat YARMOUTH 23

with bowsprit

Colour. Oxford blue and flaxen raise sides above rubbing strake. White Bootline Heavy duty grp moulding incorporating a combination of chopped strand mat and biaxial cloth. 1 ton ballast Double isophthalic get coat – clear underwater – backed up with powder bound mat and isophthalic resin followed by combination of woven roving and chopped stand mat with orthopthalic resin. Heavy duty GRP moulding comprising the weather deck, cockpit and coach roof. Hand laid choppedstrand mat laminate with sectioned plywood core to stiffen flat surfaces, on a double gel coat. Plywood support under horizontal surfaced for deck/toe rail rig fittings Stainless steel safety rail/boom support. All horizontal deck surfaces fitted with Ceylon teak planking, side decks, coach roofs, fore deck, after deck and after deck seats. BULKHEADS Two bulkheads of 15mm plywood to enclose fore and aft peaks. Partition bulkheads of 15mm ply with ash laminate All plywood marine grade to BSS 1088. COCKPIT SOLE GRP Cockpit sole Removable panel for access to back of engine, gearbox and stern gear. Deck plate in sole for convenient access to gearbox dipstick and cockpit drain seacocks Teak grating to sole
