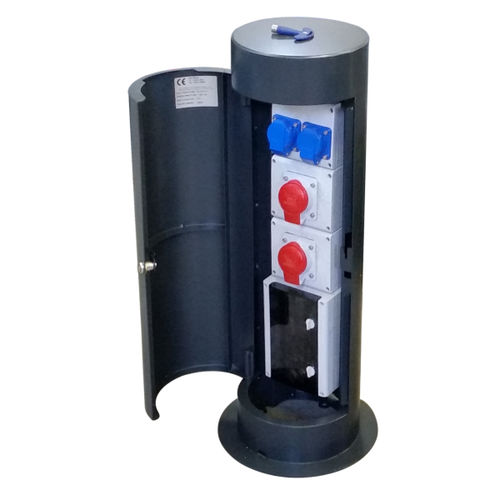

Pedestal with built-in light CUT

electrical distributionwater supplyfor docks

The fixed bollard for the distribution of electricity, energy power, water, compressed air, data transmission and audio systems, model CUT, is made entirely of AISI304 or AISI316L stainless steel and features an elegant design flat top. The structure can be painted with RAL colour. It has an internal fixing system. The door version comes with an hatch for the outlet of the cable. TECHNICAL DETAILS Standard sizes avaible A. Model CUT-250 has a width of 250mm and it's possible to choose between different height: 860mm and 1200mm B. Model CUT-325 has a width of 325mm and it's possible to choose between different height: 860mm, 1200mm and 1350mm C. Model CUT-500 has a width of 500mm and it's possible to choose between different height: 1200mm and 1350mm Structure materials A. Structure made of AISI304 stainless steel B. Structure made of AISI316L stainless steel for sea areas and waterfront Connection system Direct connection to its terminal block Electrical specs Voltage 220V/400V Power up to a maximum of 125A Frequency from 50hz to 60hz Standard protection IP44 or IP67 on demand Regulation EN 60947-1 and EN 61439 Additional equipment Electric car and vehicle charging system LED lighting diffusor system Compressed air couplings Gas system Audio / video connectors RJ-data / video / telephone jacks Water outlet / valves 1/2" or 3/4" Electricity consumption meters Water consumption meters
