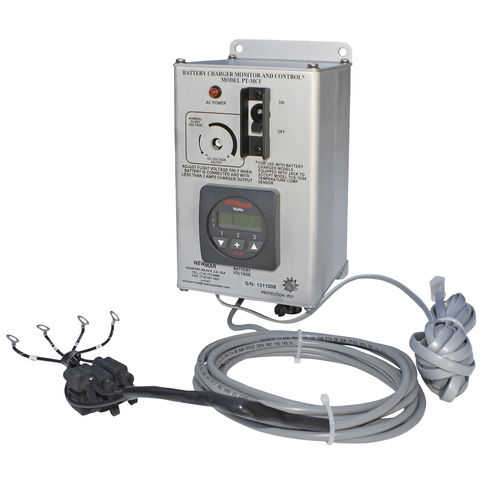

Control unit PT-MCU

Designed for installation in conjunction with most models of PT Battery Chargers, this unit provides additional functionality of monitoring, control, and alarms. It contains a Digital DC volt meter with 3 battery bank sense selector, a dial that adjusts the PT charger float voltage, and AC Master circuit breaker for control and protection of charger input power. A 10 foot wiring harness is provided for AC input and DC monitor wiring to the charger. Features Digital readout of 3 battery bank voltages to 1/10th volt Adjustable DC high/low voltage alarm Output float voltage adjustment pot; permits fine tuning from -4% to +5% AC circuit breaker (30A, double pole) provides overcurrent protection and manual disconnect AC power ON indicator light 10′ wiring harness for easy connection of PT Series Charger Compatible with: PT-14W, PT-25W, PT-40U, PT-80, PT-24-8W, PT-24-13W, PT-24-20U, PT-24-45U, PT-24-95U, and PTMS-24-67 Options 120 or 240 VAC AC failure contact Relay for DCV remote alarms (model DIR) Harness to length Mechanical Anodized aluminum case Heavy duty top and bottom mounting flanges Waterproof wire cord grips Case Size (H x D x W) Inches: 8.7 x 4.6 x 5.5 Centimeters: 22.1 x 11.6 x 14 Weight (Lbs./Kg.): 5.5/1.6
