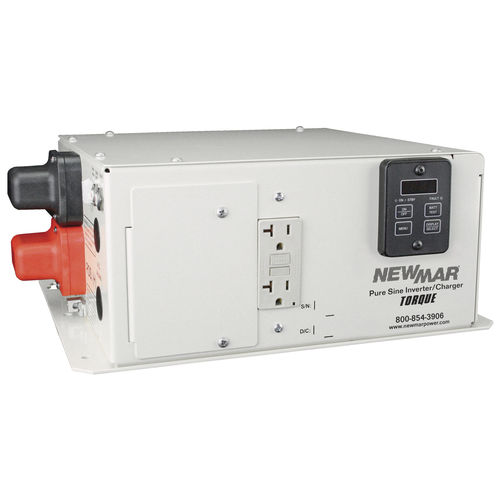

Voltage inverter-charger Torque Series
DCACmarine

voltage inverter-charger
voltage inverter-charger
Add to favorites
Compare this product


Characteristics

Type
voltage
Input
DC
Output
AC
Application domain
marine
Other characteristics
battery
Voltage

12 V, 24 V

Power

Min.: 1,000 W

Max.: 3,000 W

Description

The “Torque” Series (TQ) Inverter-Chargers incorporates all the ruggedness and reliability of the perfect wave series but with upgraded electronics that provide higher peak power, efficiency, protection and a high power density resulting in a reduction in case size. Ideal for marine applications including commercial ships, live-aboards, recreational craft, and military vessels, the Torque Series also features a diagnostic monitor panel with power limit programming is built-in with an optional full function LCD text display. Six models for use with 12 and 24 volt battery systems provide continuous rated AC power ranging from 1000 to 3600 watts at 115 VAC-60 Hz., and battery charging 60 – 150 amps. TQ inverter-chargers deliver high surge capability for starting motor loads and pure, sinusoidal AC for flawless operation of all appliances and sensitive electronics. They are ideal for entertainment systems and micro-processor-based equipment such as computers which are intolerant to AC wave distortion. Whenever shore or generator AC power is available, a built-in automatic transfer which activates the multi-stage battery charger for rapid and safe replenishment of the inverter battery bank. Protection features include thermally controlled cooling fans, low voltage cutout, thermal and overload protection and ground fault interruption, built in rugged powder coated aluminum case suitable for permanent horizontal or bulkhead mounting. A front panel LED display provides basic diagnostics and voltage data. It can also be removed and installed as a remote. An optional LCD remote indicator and control panel is available for all models.
