Boat control panel

electrical circuit

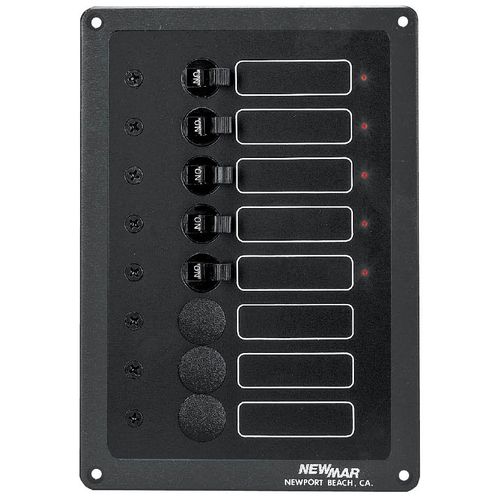

hese versatile panels are ideal when only a limited number of electrical circuits are needed, or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity. Stock panels with breakers installed come standard with DC indicator lights, but may be specially ordered with AC indicator lights. Blank versions of the panels have all necessary hardware to install indicator lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions is provided. Other more extensive label sets (up to 206 functions) are also available separately. Click here for a complete set of function lists for all label sets available. Accessory Panels ACCY-IX: 8 breaker capacity, 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A or specify. 8 DC circuit “ON” indicator lights installed, AC indicator lights installed on special order basis. LS-1 Label Set included. Weight: 2 lbs. ACCY-IBX: Blank version of ACCY-IX above. No breakers or indicator lights provided. Label set, indicator light and breaker mounting hardware provided. Weight: 1 lb. Also see circuit breaker and indicator lights. ACCY-IIX: Half-height version of ACCY-IX (above), 3 breaker capacity, 3 installed standard: 1-5A, 1-10A, 1-15A or specify. With DC “ON” indicator lights. AC indicator light installed on special order basis. Weight: 1 lb. ACCY-IIBX: Blank version of ACCY-IIX above. No breakers or lights provided. LS-1 label set, light and breaker mounting hardware provided. Weight: 1 lb.
