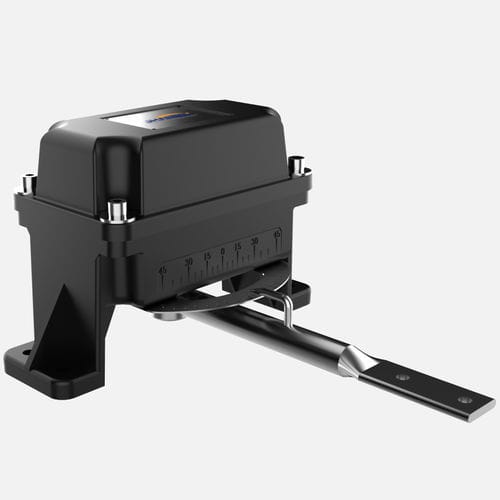

Rudder angle sensor WSS-R270

pressurefor boats

The WSS-R270 rudder angle feedback device is installed in the rudder compartment and is used to convert the mechanical angle of the rudder into electrical or digital signals in real time, and transmit them to receiving modules such as rudder angle in The feedback has an accuracy of 0.5° and excellent stability. The maximum number of potentiometers is 4, providing users with more choices. The product protection class is IP65, completely prevent foreign objects from invading and can completely prevent dust from entering, and prevent low-pressure water spray lasting at least 3 minutes. Rotation range ±45° Power dissipation <1W Precision 0.2° Weight 2.2kg Signal output Potentiometer, CAN, RS422 IP lever IP56 Transmission mode Gear drive Cable length Do not contain
