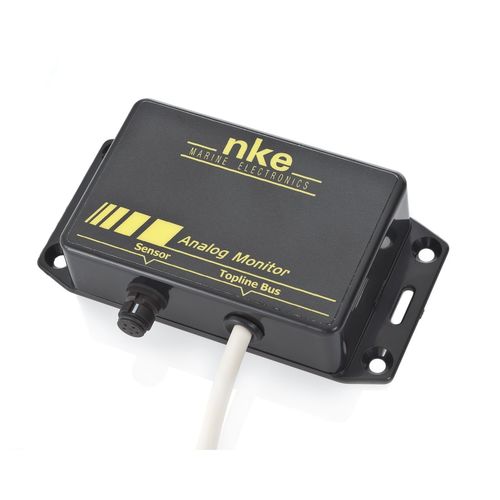

Create and publish on the Topline Bus your own channels.
This Interface allows you to create and publish on the Topline Bus the data of any third party sensor(s) of analog voltage type (ex: mast angle sensor, keel angle sensor, tank gauges…).
SPECIFICATIONS
Power supply
10 to 16VDC
Consumption
22mA without lighting and 90mA with lighting
Waterproofing
IP67
Weight
400g including cable
Cable bus
Ø 5.0 ± 0.3 - weight: 34 g/m
Dimensions
height : 97mm; width : 147mm; thickness : 25mm
Operating temperature
-10°C à +50°C
Storage temperature
-20°C à +60°C
Horizontal viewing angle
> 120°
Vertical viewing angle
> 90°
Character height
18 mm for the channel, and 6 mm for the title and unit
FEATURES
For standard sensors (mast angle sensor, keel angle sensor, tank gauges), display of the sensor data on all Topline displays.
For other custom sensors, display of the data on the multigraphics on a configurable dynamic channel: choice of the unit format and label. Display in analog or digital form..
Up to 8 customizable channels
Customized configuration of the interface by nke.
