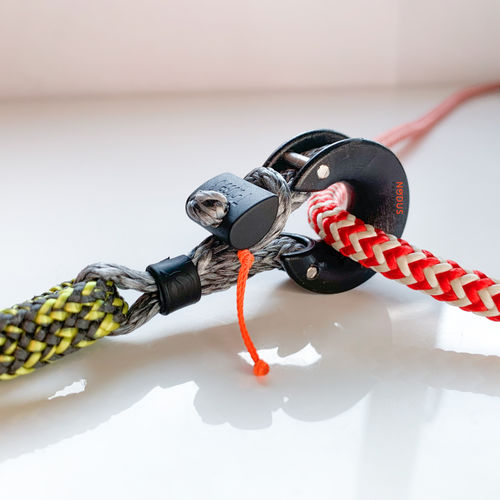

Single block P-Tech & C-Tech hooks
cheeksnatchlow-friction

single block
single block
single block
single block
single block
single block
single block
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
cheek, low-friction, snatch
Configuration
lashing, with fixed head, with shackle, with snap shackle, soft axle
Maximum line diameter
max. rope ø 14 mm
Application domain
for sailing dinghies, for sailing yachts, for shipyards, kitesurf
Applications
sail, for deck, system
Material
resin
Working load

Max.: 1,500 kg
(3,306.9 lb)

Min.: 200 kg
(440.9 lb)

Breaking load

400 kg, 800 kg, 2,000 kg, 2,500 kg, 3,000 kg
(881.8 lb, 1,763.7 lb, 4,409.2 lb, 5,511.6 lb, 6,613.9 lb)

Center diameter

6 mm, 8 mm, 10 mm, 14 mm
(0 in, 0 in, 0 in, 1 in)

Weight

12 g, 20 g, 24 g, 34 g
(0 oz, 1 oz, 1 oz, 1 oz)

Description

TH C®, the Textil Hook opening friction ring is the lightest and strongest removable sheet control solution. + USES - Enables rope to be quickly passed in any situation - Barber, in-haulers or spare pulley - Can be installed anywhere or on the deck - Hoist (mainsail, vang, running backstay,…etc) + DATA SHEET - Nodus Factory opening friction ring made of Self-lubricating technical plastic resin ¬ black - Block®, clamping and holding ring, made of technical PA, which can lock and quickly fix a textile hook friction - Loop textile®, core and sheath made of 100% Dyneema® R2 12fx pre-stretched, coated ¬ Light grey / black T-close Shackle ¬ Glass-fibre reinforced PA + AVANTAGES - Opening friction ring system, mobile and versatile - Weight/strength ratio - Performance, lightness and reliability - Reliable and maintenance free
