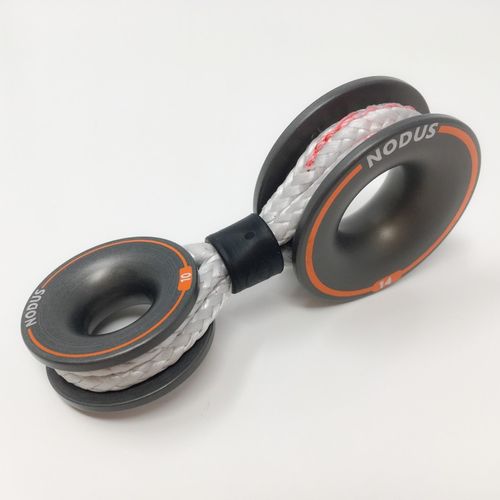

Single block BF-D®
fiddlewith fixed headmax. rope ø 14 mm

Single block - BF-D® - NODUS FACTORY - fiddle / with fixed head / max. rope ø 14 mm
Single block - BF-D® - NODUS FACTORY - fiddle / with fixed head / max. rope ø 14 mm
Single block - BF-D® - NODUS FACTORY - fiddle / with fixed head / max. rope ø 14 mm - image - 2
Single block - BF-D® - NODUS FACTORY - fiddle / with fixed head / max. rope ø 14 mm - image - 3
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
fiddle
Configuration
with fixed head
Maximum line diameter
max. rope ø 14 mm
Application domain
for sailboats, for yachts, for shipyards, kitesurf, boat, dinghy
Applications
boom, for running backstays, backstay, heavy-duty, system, mast
Material
aluminum
Working load

Min.: 750 kg
(1,653.5 lb)

Max.: 2,500 kg
(5,511.6 lb)

Breaking load

1,500 kg, 1,800 kg, 5,000 kg
(3,306.9 lb, 3,968.3 lb, 11,023.1 lb)

Center diameter

6 mm, 10 mm, 14 mm
(0 in, 0 in, 1 in)

Weight

16 g, 18 g, 22 g
(1 oz, 1 oz, 1 oz)

Description

BF®, Block-Friction® fiddle ring with FrD- duralumin friction ring has an exceptional weight to strength ratio (10 times lighter than a pulley), designed for high static loads. Block Friction® is used for 3:1 or 4:1 downhaul or mainsail hoists on dinghies, as well as for cunningham adjustment hoists or sheet point hoists on larger boats. + USAGE - Under barbs - 3D headsail adjustment - Hoists (mainsail, downhaul, backstay, etc.) - Double sheet returns - Pantsuit + TECHNICAL SHEET - Nodus Factory low friction ring in self-lubricating technical plastic resin ¬ black and or aluminum partner product - Block®, clamping and holding ring, which allows to block and fix quickly a low friction ring. - Loop textile®, core and sheath 100% in Nodex® R2 12fx pre-stretched, sizing ¬ Light grey / black - Resistance certified by Veritas + ADVANTAGE - Weight/resistance ratio - Performance, lightness and reliability - Reliable and maintenance free
