- Single block
- NODUS FACTORY

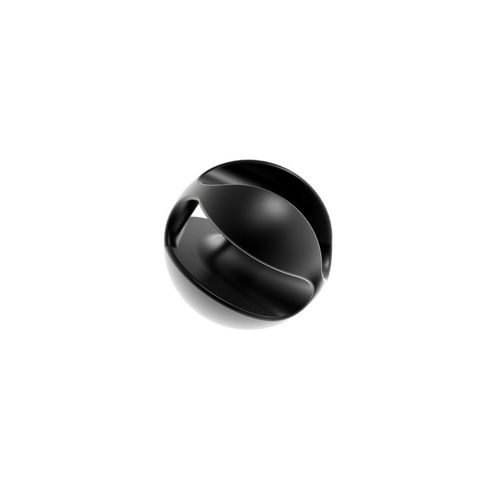

Single block Block-Nub®mast footfrictionhigh-resistance
Add to favorites
Compare this product
Characteristics
- Number of sheaves
- single
- Type
- friction, high-resistance, mast foot, snatch
- Configuration
- lashing, with Dyneema® ring, with shackle, hook, with snap shackle, soft axle
- Bearing type
- plain bearing
- Maximum line diameter
- max. rope ø 14 mm
- Application domain
- for sailboats, kitesurf, boat, dinghy
- Applications
- for running backstays, backstay, sail, heavy-duty, masthead
- Material
- carbon, resin
- Working load
Min.: 175 kg
(385.8 lb)Max.: 475 kg
(1,047.2 lb)- Breaking load
950 kg
(2,094.4 lb)- Thickness
30 mm
(1 in)- Center diameter
14 mm
(1 in)- Weight
5 g
(0 oz)
Description
The Blok-Nub® friction sheave is a low-friction, sheave-less sheave with cover that withstands very high loads.
Intrinsically lubricated, it can be used in a wide range of applications and on all types of non-aggressive ropes.
Block-Nub offers a unique combination of advantages in terms of performance, durability and ease of use. It's an excellent choice for applications where friction must be minimized and strength maximized.
