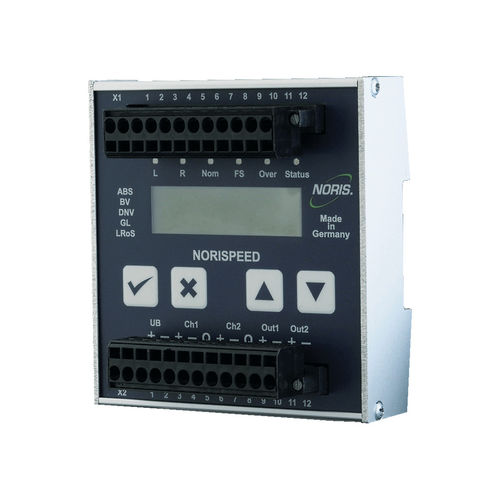

Boat transmitter FMN6

Multifunctional device for frequency input and monitoring. Measurement of up to 2 speed signals with slip or offset measurement. Direction of rotation detection. Free programmable speed range. 2 galvanically isolated norm signal outputs (0...5 V, 0...10 V, 2...10 V, +/-5 V, +/-10 V, 4...20 mA or 0...20 mA). 6 potential-free relais outputs with normally open switch. Short-circuit- and overvoltage proof outputs. Simple mounting and operation. Approvals: Marine ABS, BV, DNV-GL, LR, NK, KR The multifunctional device NORISPEED is designed for speed measurement and rotational direction detection with slip- as well as offset measurement and processing the measurement values into electrical norm signals. Additionally, specific speed ranges can be monitored and evaluated via digital outputs by a master controller. Therefore, the device is equipped with potential free switching outputs for rotational direction, firing speed, nominal speed, over speed and device status. For easy operation NORISPEED has four buttons and a front display.
