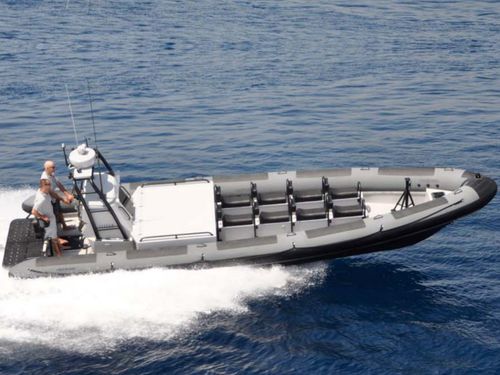

Patrol boat X10

military boatinboard waterjetdiesel

Description The 10.5 meter X10 RIB, has a modern deep V hull design that combines steep deadrise angles forward for soft entry when cutting into head seas, and a planing keel with deep chines for improved acceleration, speed and stability. Fitted with inboard diesel engines and either water-jet or stern drive propulsion, it can be used for operations in both coastal and riverine environments. Waterjets pro- vide exceptional maneuverability, and can stop the boat almost in its own length, and allow the boat to operate in extremely shallow areas. Deck hatches over the centrally or rear mounted engines provide an ideal platform for boarding and transfer operations. The console is ergonomically designed to allow the crew to operate the boat with maximum efficiency, and provides storage for equipment and combat communica- tions modules. General Basic Functions - : Patrol, Interdiction, Amphibious, OPSs insertion Hull Material - : Infused vinyester Composite Collar Type - : Hypalon 1500 GSM Dimensions Length Ovaer All :10.50 m Beam Over All : 3.20 m Beam of Hull : 2.30 m Draught : 0.80 m Displacement : 6,000 Kg Tube Diameter : 550 mm Collar Compartment : 7 Compartment w/pressure relief valves Propulsion Main Engines - : 2 x Inboard Engine Up to 900 HP(total) Performance Speed (Max Power) - : 45 knots Speed (Cruising) - : 30 knots Range - : 240 Nm Seating Crew + Personel - : 10 Persons Deck Equipment Fwd Gun Mounting : 1 x 12.7 mm cal Electrical Equipment 12V DC Batteries with Inbuild Charger (220 V) Life Saving Equipment Fire Extinguishing : Auto and Portable Powder FE Rescue Equipment - : Lifejacket Life Buoys
