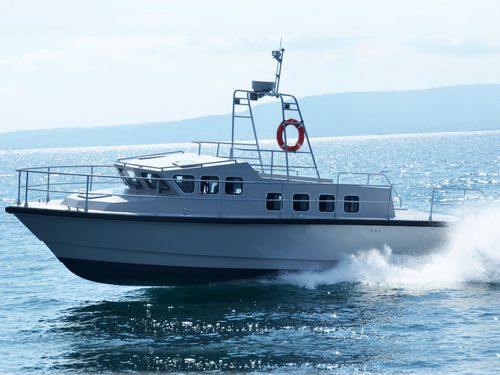

Patrol boat X12

military boatinboard

GENERAL DESCRIPTION The X12 is an 11.7 m long craft designed for patrol and interception roles in tropical areas. It is configured with an enclosed cabin to seat 3 crew members and 8 troops, and is equipped with a fully integrated navigation, radar and communication package, and a head (toilet). There is an elevated 12.7 mm gun mount strategically positioned on the cabin top, with two additional gun mounts on the aft deck. The engine hatches and wide side decks enhance safety and ease of movement around the craft, especially during boarding operations. And the aft transom platform protects the propulsion system, and can also be used for diving operations or re- covering persons from the water. The modern V hull combines deadrise angles forward for cutting into head seas, and a keel plank aft to improve acceleration, speed and stability. And the heavy duty tendering provides protection when coming alongside other vessels. The boat can operate in offshore and shallow waters, and if needed, make beach landings. Spesification General Basic Functions - : Patrol, Interdiction Hull Material - : Infused Vinylester Composite Dimensions - Length Ovaer Ail - :11.70 m Beam Over Ail - : 3.54 m Draught - : 0.84 m Displacement - : 9,780 kg Fuel Capacity - : 1.350 L Propulsion - Main Engines - : 2 x Diessel Engine 480 HP Gearbox - : 2 x ZF 286 IV ratio (TBC) Propulsor - : Convt Propeler / Waterjet Performance - Speed (Max Power) - : 37 knots Speed (Cruising) - : 30 knots Range - : 300 Nm Accomodation - 11 Persons - Deck Equipment - Fwd Gun Mounting - : 1 x 12.7 mm cal Aft Gun Mounting - : 2 x 7.2 mm cal Electrical Equipment - Generator - : 4.5kW Life Saving Equipment - Fire Extinguisher - : Portable Powder FE, Auto FE
