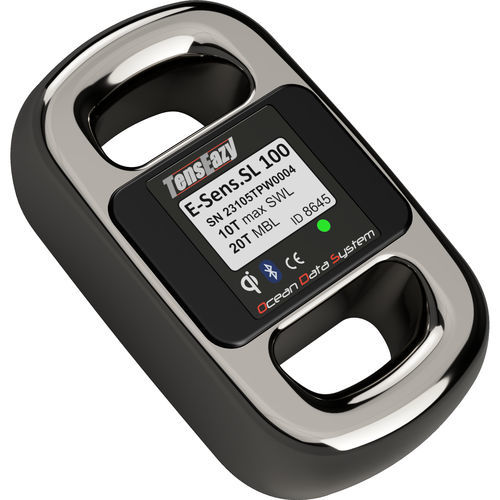

Load sensor eSense.SL

for boatsfor sailboatswireless

- Ultra-compact - Ultralight device - Quick and easy setup - Designed for soft (textile) attachments - Logs on automatically to your smartphone or tablet via the TensEazy app - Data transmission to all Ocean Data System's ECUs (TensEazy logger, UpSideUp, Sail'In Control) - TensEazy Gateway: interfacing to NMEA2000 - NMEA0183 - NKE - Factory calibrated - accuracy < 0,5% of maximum working load - Exceptional autonomy - Wirelessly rechargeable battery - Fully waterproof (no vulnerable entries) 5 standard models: - eSense.SL06 - Safe working load 0.6T - Breaking load 1T - eSense.SL20 - Safe working load 2T - Breaking load 4T - eSense.SL50 - Safe working load 5T - Breaking load 10T - eSense.SL100 - Safe working load 10T - Breaking load 20T - eSense.SL200 - Safe working load 20T - Breaking load 40T Specific capacities available on request Mechanical attachment end options: - webbing, loop or lashing - Strong adhesive tape: PROTect Tape LoopX® Material: - Sensor body: Titanium Wireless transmission: - Bluetooth® - Up to 30 metres range - User adjustable frequency from 0.1Hz to 10Hz + Standby mode - User adjustable resolution from 14.25 to 16.75bits Environmental: - IP67 rated - Operating temperature range : -20° to +60°C Autonomy (indicative): - @ 1 sample per second -14.25bits : 50 days - TX settings dependent - Second optional battery doubling the autonomy (Except eSense.SL06 and eSense.SL20) - Wirelessly rechargeable battery Sustainability: - Long-lasting device - Refurbishable in our workshops - Zero waste until its end-of-life
