Level indicator

for boatsanalogfuel tank

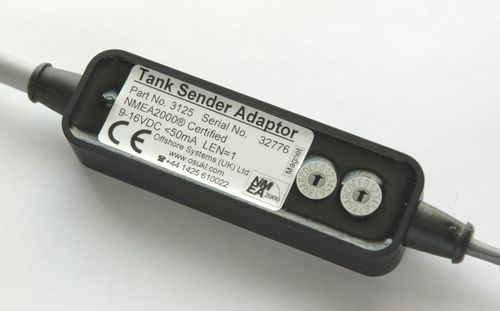

The 3125 NMEA2000® Tank Sender Adaptor allows a standard resistive tank level sender to connect to the NMEA2000® network. It is compatible with both European standard 0-180 Ohm and United States standard 240-30 Ohm tank level senders and is accurate to ±1%. The 3125 NMEA2000® Tank Sender Adaptor allows a standard resistive tank level sender to connect to the NMEA2000® network. It is compatible with both European standard 0-180 Ohm and United States standard 240-30 Ohm tank level senders and is accurate to ±1%. It is easily configured by means of small switches to resistive senders from Fuel, Freshwater, Wastewater, Live Well, Oil and Blackwater (Sewage) tanks linking them to the NMEA2000® network. It supports up to 16 tanks of each type on a single network. The Tank Sender Adaptor is robustly constructed to the IEC60945 Maritime Navigational and Radiocommunications Equipment Standard to ensure high reliability and trouble free operation for many years. It is certified to the NMEA2000® network standard and attaches to the network using a single “Micro” plug. It draws less than 50mA from the network.
