Yacht sliding glass door 2114.00

slidingautomaticstern

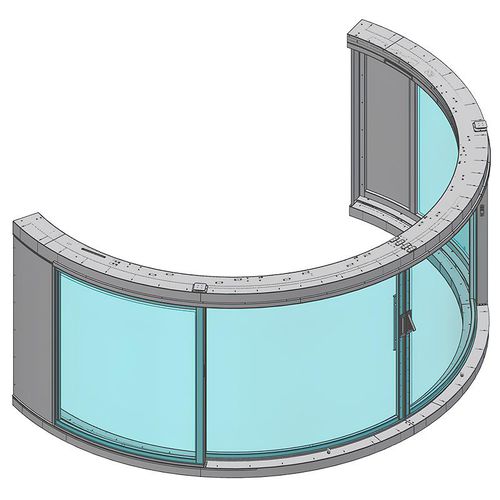

Automatic door Verandas Sliding bowed glass door with polished AISI 316L stainless steel frame and rails. Upper part containing the rails and the stainless steel sliding system with a removable AISI 316L stainless steel cover for the hall side part of the sunroom. Removable cover and painted AISI 316L stainless steel crossbeam for the cockpit side of the sunroom. Stainless steel lower rail with polished visible parts. Externally installed door composed of two convex wings sliding towards the prow and two concave wings sliding towards the stern opening oppositely and simultaneously by means of an electric opening system. Wings fitted for the installation at shipyard’s care of 12 mm thick monolithic glasses. In open position, the wings are located in the middle part of the door, both portside and starboard, inside a housing in the frame structure. The shipyard will supply and install a cover which will be fastened to the frame and hide the wings when door is open. The door has to be placed on a flat deck (without bending areas neither lengthwise nor crosswise) Clear opening L= 4200 mm x H = 2450 mm. External radius = abt 2100 mm. Customized electronic control panel as per shipyard’s requirements. A safety system makes it possible to open the door manually from the inside in case of power failure by means of an unlocking wire. Anti-crushing photocell system Power 220V. Power transformer without service battery.
