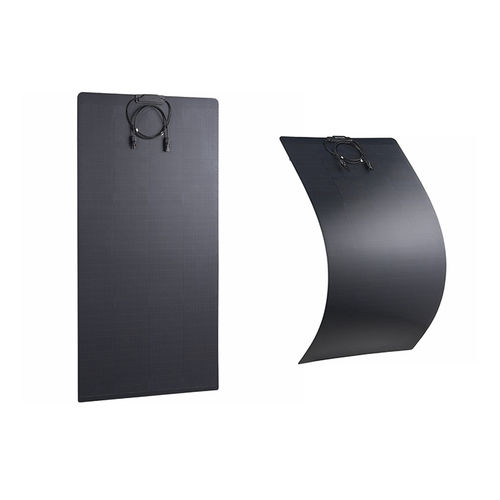

Flexible solar panel 001041
60 cells

Flexible solar panel - 001041 - OZO - 60 cells
Flexible solar panel - 001041 - OZO - 60 cells
Flexible solar panel - 001041 - OZO - 60 cells - image - 2
Flexible solar panel - 001041 - OZO - 60 cells - image - 3
Flexible solar panel - 001041 - OZO - 60 cells - image - 4
Add to favorites
Compare this product


Characteristics

Structure
flexible
Number of cells
60 cells
Peak power (Wp)

150 W

Voltage at maximum power

20.4 V

Max power current (Imp)

7.4 A

Open circuit voltage (Voc)

24.1 V

Short circuit current (Isc)

7.8 A

Weight

3,300 g
(116.4 oz)

Length

1,345 mm
(53 in)

Width

585 mm
(23 in)

Thickness

3 mm
(0 in)

Description

This 12V photovoltaic panel is assembled with 32 Sunpower Maxeon A-class cells featuring Back contact technology and ETFE thin film lamination to ensure maximum output even on low light days. ETFE (ethylene tetrafluoroethylene): a composite material with a high manufacturing quality that makes the solar panels extremely robust. These panels protected by this ETFE coating will not be subject to delamination, cracking or corrosion. This coating also ensures optimal light transmission which improves the efficiency of the solar panel. This protection has been used for many years in applications where durability and temperature resistance are a priority. For maximum charging efficiency, we recommend using a Genasun MPPT boost controller with this panel, which will allow your batteries to charge even on cloudy days. This panel is a flexible panel accepting a bend of up to 30°. This 150W flexible Sunpower panel is the best compromise for an efficient photovoltaic installation when traveling on a solar bike. You will produce an average of 500Wh per day of riding. The MPPT technology of the Genasun charger and the "back contact" technology of the Sunpower cells will allow you to keep good performance even on days with little sun. The panel is IP65 waterproof which means you can travel with it on a boat, bike or camping even in heavy rain.
