Soundproofing panel CLASS A60

for ship floorswoolstainless steel

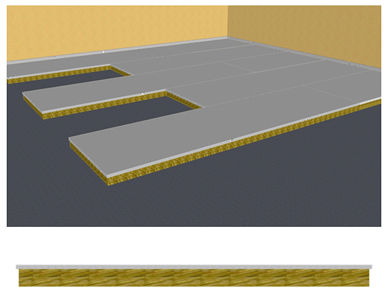

The Class A60 floor is especially designed to soundproof and provide heat insulation in high-risk rooms. It is made from galvanised steel sheets with a thickness of 3 mm and rock wool with a thickness of 60mm and a density of 180 Kg/m3, all of which is joined with mono-component PUR glue, which has been especially designed for this product. The Class A60 floating floor has been designed for those rooms which require A60 protection. FIRE CLASSIFICATION - A60 STANDARD MEASUREMENTS - 2000X480 MAXIMUM LENGTH - Hasta 3000mm MODULE WIDTH - 480mm THICKNESS - 70mm WEIGHT - 40 Kg/m2 (30mm) SOUNDPROOFING - 49 dB (100-3150 Hz) HEAT CONDUCTIVITY - 1 (Kcal/m2 hºC) APPLICATION - Floor
