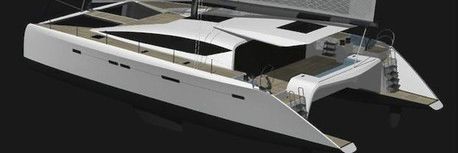

Catamaran Grainger Raku 60

cruising4-cabin

There are various options available for the layout. Helm stations can be aft and outboard, or on the cabin Bulkhead as used by most of our cruising designs. There are several options available for the cockpit layout with a settee/dinette permanently mounted forward in the cockpit (best suited to the helm aft arrangement), or a table immediately forward of the seat which is built into the aft beam. In the salon and down below the accommodation arrangement will be drawn to incorporate the requirements of the client and provide a completely personalised space. RAKU 60 SPECIFICATIONS LOA 18.3M 60' BOA 9.7M 31'9" Beam CL-CL 3.6m 12' Hull Draft 635mm 2'1" Beam WL 1332mm 4'4" B:L Ratio 1:13.8 Wetted area 2 hulls 56.9sq.m. 612sq.ft. Bridgedeck clearance DWL 1.1m 3'7" Headroom in saloon 2.1 6'10" Headroom in hulls 2.1m 6'10"
