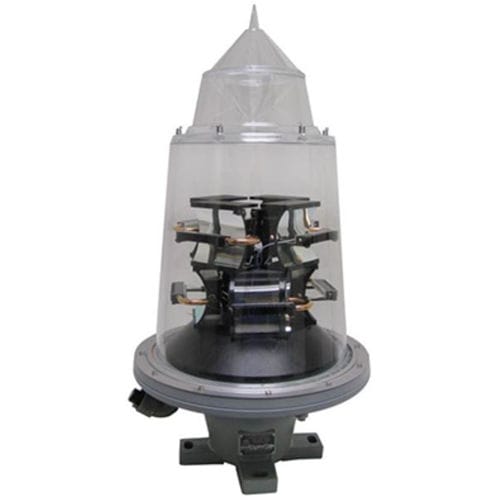

Harbor signalling light FA-250HA

LEDwhitered

The FA-250 Class 1 Div 2 LED Marine Lantern features a highly efficient optic, designed to meet the requirements of offshore oil platforms for 3, 5, 10 or 15 NM applications. eatures: USCG and FM Approved Certifications Selectable Power Level Settings Multiple Pre-programmed Flash Rhythms plus 1 for User Programming Linear arrays of very high flux LED's individually mounted in a parabolic reflectors LED’s mounted on specially designed patented heat sinks to keep the temperature of the LED below 50°C to assure the design life of 60,000 hours Controller provides flash control, current limiting to the LED, photocell input and synchronization terminal Approved by the U. S. Coast Guard for Gulf of Mexico use on Class A structures in the 8th Coast Guard District at 4 watts at Quick Flash. Lantern has 10 NM range at Morse code “U” at minimum of 20 watts. Variations of Lantern: FA-250 3 mile: 4.0 Watt LED Array providing Flashing 3-mile Morse U Red Light. Average Power 1.0 watts. FA-250 5 mile: 4.0 Watt LED Array providing Flashing 5-mile Quick Flash. Average power 1.0 watts. FA-250 10 mile: 20 Watt LED Array providing Flashing 10-mile Morse U White Light. Average Power 3.33 watts. FA-250 15 mile: 300 Watt LED Array providing Flashing 15-mile Morse U White Light. Average power 50 watts.
