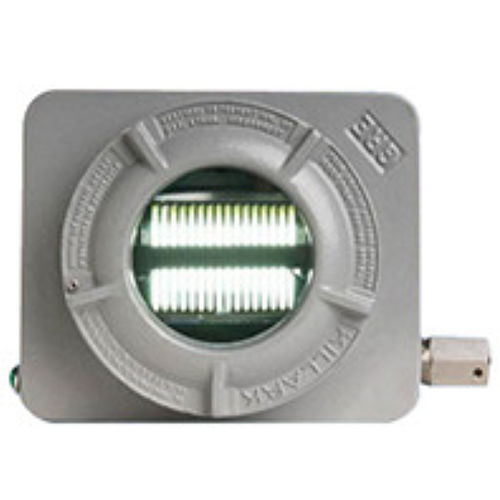

Signaling floodlight FA-166EX

marinefor hazardous areasLED

The FA-166EX Hazardous Area Fixture is engineered to perform multiple lighting functions on offshore production platforms and drilling rigs. Its rugged, heavy-duty construction provides superior performance to plastic products in high temperature and high UV marine environments. Features: On approximately 22.5m x 22.35m helideck, the average illumination values are 18.8 lux for the “H” and 20.6 lux for the helideck. Features high flux LED arrays mounted on a stainless steel, parabolic reflector; highly efficient reflector uses a state of the art dichroic hybrid spectral metal coating LEDs are mounted on metal core PCBs with patented integrated heat pipes to cool the LED arrays without a cooling fan LED array has the highest design life in the marketplace (greater than 60,000 hour) Higher output with lower power consumption Meets CAP437 and ICAO signaling requirements 3° vertical by 35° horizontal illumination for helidecks and other area illumination Once installed, no maintenance required Electronic controller is housed in a separate housing that can be located as much as 500 meters away from the light Controller provides current limiting to the LED array Certificates: FM Approved Class 1, Div. 1, Groups B, C, D Class 1, Zones 1, Groups IIB+H2, IIA Ta -20°C to +40°C CENELEC/ATEX/IECEx EExd IIC T6 or T5 Ex d IIC T6 or T5
