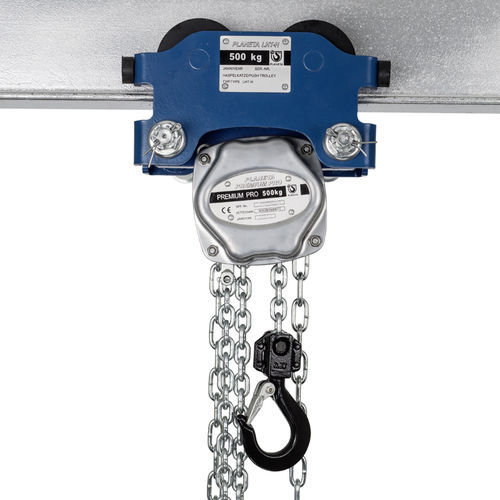

The very best manual chain hoist PLS PREMIUM and a trolley LST are put together in an integrated combination to save headroom. That means the distance between load point of hook and bottom of beam flange. This is very important if rooms are low or space is narrow. Halls can be build smaller what saves costs. Or if the clearance in older buildings is too narrow for standard hoists – this is the solution!
The close combination of hoist and trolley with low headroom offers a unit that is both functional and versatile. There is less time spent messing with equipment and money is saved. The LHT-line uses the quality advantages of the PREMIUM manual chain hoists.
The smoothly moving and operation on ball bearings plus a perfectly finish of surface protection offers the user an uncomparable reliability. The standard equipped overload protection fulfills even the high demands on ocean going vessels.
dvantages of trolley hoist:
Capacity from 500 kg to 20,000 kg
Optimal space utilisation
Shortens downtime in ships
Enables low cost bridge cranes
Labor saving during repair and maintenance works
Standard version:
PREMIUM chain hoist with 3 m lift and 2.5 m hand chain operation length
Available as manual push trolley (TYPE -H) or geared trolley (TYPE -G)
Options (on request):
Chain case (what is very unusual for manual chain hoists) for downhanging loose chain that may cause trouble in some cases
For corrosive environments, completely zinc plated surfaces are also available for the trolley
Special flange widths of up to 305 mm are possible if the specified adjustment range (dimension H) is no longer sufficient
Starting buffer
