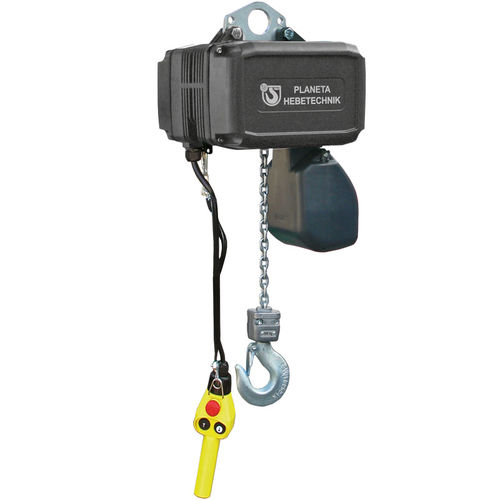

Chain hoist GCH-EX

electriccompact

This electrical chain hoist was developed for the industrial sector. Housing and cover made of pressure-die cast aluminium. Quiet, smooth operation with helical gearing. Ultimate safety standard thanks to arrangement of brake after slip coupling. Proven DC spring pressure brake. Equipped with transmission limit switch. Wide range of accessories and options. Features: 3 m lift Geared limit switch for highest and lowest hook position. Easy to adjust in exact position with milled setting ring Hoisting chain, zinc plated acc. DIN EN 818-7-T Standard lug suspension Pendant control with 1.8 m cable Overload protection According ISO (FEM)-classes Voltage: standard is 3-ph-400V-50 Hz 42 V control system Protectin class IP 65 Isolation class F Certified according to DIN EN ISO 9001:2008 Incl. test book in acc. with CE and accident prevention regulation specifications Compact design with small hook dimension For EX-areas up to Zone II 3D Ex tc IIA T130 °C Db
