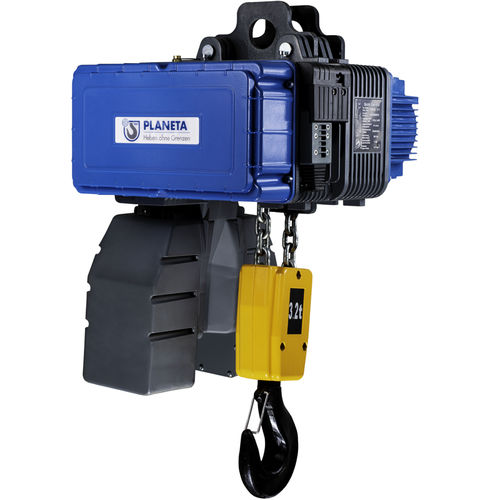

Chain hoist PITCH

electric

The PITCH PF electric chain hoist incorporate latest technologies, to achieve highest performance and safety under any circumstance. Redundant overload systems offer both electronic and mechanical protection for the hoist and the supporting structure above. HIGHER DURABILITY The PITCH PF chain hoist is build with an excellent drive system build around a sturdy and high efficiency gearbox, a high performance TENV electric motor, and an electronic speed controller. Adjustable geared limit switches for upper and lower end positions are integrated into the IP66 main control panel, together with the controller and lifetime design brake. All serviceable components, such as the patented chain guide and sprocket wheel are easily accessible. MECHANICS Single fall up to 2,500 kg Two fall up to 5,000 kg Mechanical overload device (Slipping clutch) Maintenance-free spring loaded disc brake Operation temperature -20 °C to +45 °C Housing protection through powder coating Lower hook according to DIN 15400 European zinc plated and hardened chain (class T) according to DIN EN 818-7 Maximum noise level: 70 dB 3 m lift Chain box Standard suspension eye ELECTRICS Variable speed motors with preset 4:1 ratio for all frame sizes and gear ratios Main motor controller including safety options Electronic overload protection Motor thermal protection with bi-metal switch Motor insulation class H All components connected by plugs Low voltage control Emergency stop with main contactor Separate brake rectifier to control the brake Inverter traveling with EP or MS mode IP66 protection CERTIFICATIONS, STANDARDS This product is in conformity with the relevant provisions of the Machinery Directive.
