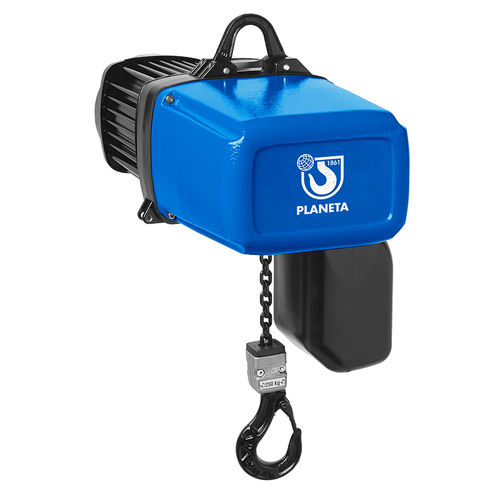

Chain hoist PEH 1PH

electriccompact

The PLANETA PEH 1PH is equipped with a 1-phase motor. It is used wherever no 3-phase power supply is available, e.g. on changing construction sites or in mobile operations. The PEH 1PH electric chain hoist has an unusually compact modular structure. Motor and transmission can be replaced effortlessly by using polygon connections without the need for special tools in malfunction or repair situations. Features: Capacities up to 1,000 kg Classification according to FEM in engine group 2m Robust cast aluminium housing Contactor control type of control unit Protection class IP 65 1 phase motor (1Ph): 1 speed Range of utilisation between -15° and +50° Operating voltage 3 / 400 Volt / 50 Hz Options : Hook suspension Safety load hook, self-closing Carriages, operated manually or electrically Connection cable with connector
