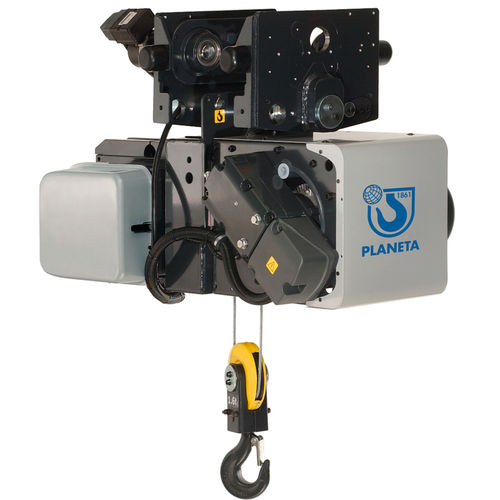

Electric hoist N-Serie

compact

The PLANETA electric cable hoists have an unusually compact structure. The optimum drum design enables loads to be lifted almost without hook migration, achieving the best approach dimensions. The cables are designed for challenging lifting work in the industrial sector, and are used as single-rail noises or as cable hoists on gantry cranes. Capacities up to 80,000 kg Classification according to FEM in engine group 2m Compact design Contactor control with 48 V control voltage Protection class IP 55 Geared limit switches for highest and lowest hook position Electronical overload protection Range of utilisation between -15° and +40° Operating voltage 3 / 400 Volt / 50 Hz Options: Lifting height up to 90 m possible Other operating and control voltages Trolleys electrically operated Operation by radio control Load spectrum recorder
