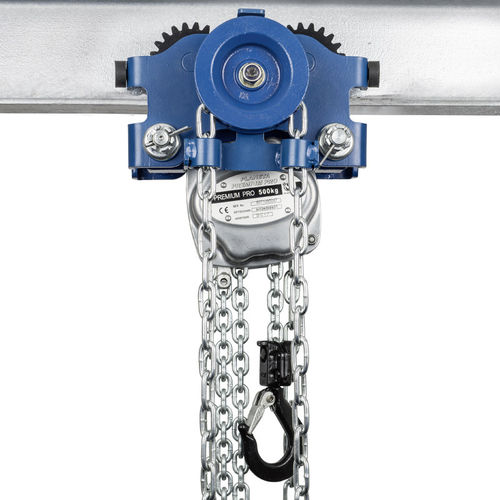

Chain hoist LHT-G

•Capacity from 500 kg to 20.000 kg •Optimal space utilisation •Shortens downtime in ships •Enables low cost bridge cranes •Labor saving during repair and maintenance works Standard version: •PREMIUM chain hoist with 3 m lift and 2.5 m hand chain operation length •Available as manual push trolley (TYPE -H) or geared trolley (TYPE -G) •A contour trolley wheel design provides maximum beam contact on flat or tapered beams. Tilting and climbing protection according CE-regulations are self-evident Options (on request): •Chain case (what is very unusual for manual chain hoists) for downhanging loose chain that may cause trouble in some cases •For corrosive environments, completely zinc plated surfaces are also available for the trolley •Special flange widths of up to 305 mm are possible if the specified adjustment range (dimension H) is no longer sufficient. •Starting buffers The very best manual chain hoist PLS PREMIUM and a trolley L87 are put together in an integrated combination to save headroom. That means the distance between load point of hook and bottom of beam flange. This is very important if rooms are low or space is narrow. Halls can be build smaller what saves costs. Or if the clearance in older buildings is too narrow for standard hoists – this is the solution! The close combination of hoist and trolley with low headroom offers a unit that is both functional and versatile. There is less time spent messing with equipment and money is saved.
