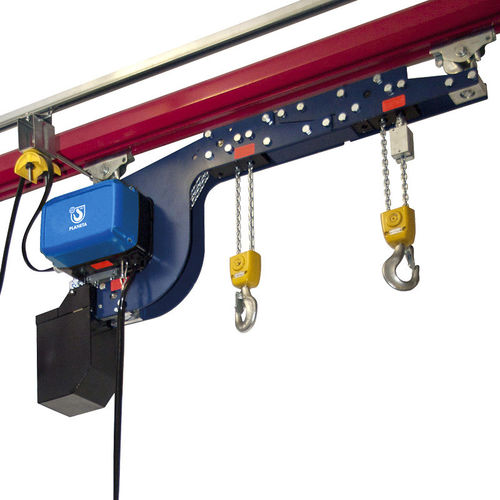

Chain hoist PEHS

electriccompactend carriage

•Capacities up to 3.200 kg •Two load attachment points for synchronous lifting •Robust cast aluminium housing •Control voltage 42 V low voltage •Protection class IP 65 / 55 •Geared limit switches for highest and lowest hook position •Overload protection by slipping clutch •Range of utilisation between -15° and +50° •Operating voltage 3 / 400 Volt / 50 Hz Options: •Hook suspension •Other operating and control voltages •Trolleys manually or electronically operated •Operation by radio control •Version for food industry The PLANETA PEHS is based on the PEH electric chain hoist respectively, and is the optimum solution for the synchronous lifting of loads, e.g. shafts, long cross-beam. Synchronous lifting of these loads is assured by two driven load cables running off the same sprocket wheel. For individual operation, the desired distance between the two hook supports can be defined when an order is placed (max. 5 m).
