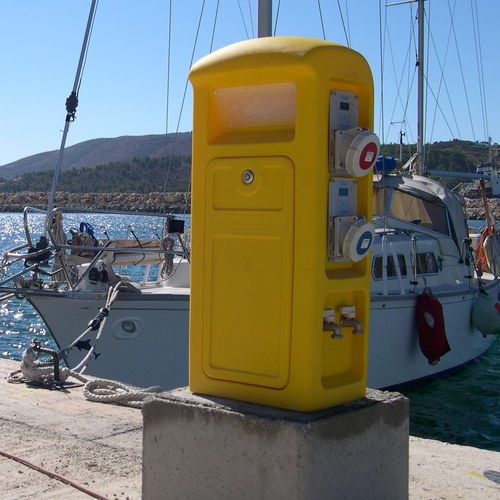

Pedestal with built-in light SMART K
electrical distributionwater supplyfor docks

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks - image - 2

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks - image - 3

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks - image - 4

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks - image - 5

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks - image - 6

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks - image - 7

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks - image - 8

Pedestal with built-in light - SMART K - Plus Marine - electrical distribution / water supply / for docks - image - 9

Add to favorites

Compare this product

Go to the Plus Marine website for more information

Characteristics

Type

with built-in light, electrical distribution, water supply

Installation

for docks

Other characteristics

LED

Height

800 mm
(31 in)

Length

350 mm
(14 in)

Width

265 mm
(10 in)

Amperage

Max.: 125 A

Min.: 16 A

Description

CASING MATERIAL - POLYMER HDPE/ADT UV PROTECTION PEDESTAL PROTECTION - IP 56 STANDARD - YES IP 67 - OPT. TERMINAL BLOCKS FOR LINE CONNECTION - Connection through 5 poles in/out terminal blocks for R S T N PE conductors - YES INSTALLABLE TERMINAL BLOCKS - Threaded pin joint from 6 up to 12 mm for cable lugs from 50 to 300 mm2 - YES SOCKETS PROTECTION - IP 67 - YES GENERAL CONFORMITY - Our products are designed, manufactured and tested to meet the regulations that guarantee their compliance with CE Marking standards (EN 60439-1) OPERATING TEMPERATURE - -30°C +70°C IMPACT RESISTANCE - IK 10 ACCESS - Through lockable door FIXING IN PLACE - With 4 x M10 bolts LIGHTING - High efficiency LED PROTECTION - Through fuse or 2A MTD WATER DISTRIBUTION CONNECTION TO WATER MAIN - Through ¾” or ½” female coupling. Through quick coupling for 20mm polyethylene pipes CONNECTION TO WATER OUTLETS - ½” nickel-plated brass ball valves. Quick coupling valves for standard gardening connector AVAILABLE METERING SYSTEMS ELECTRICITY METER - Progressive with display of kWh used WATER METER - Litre-counter with display of consumption for each user
