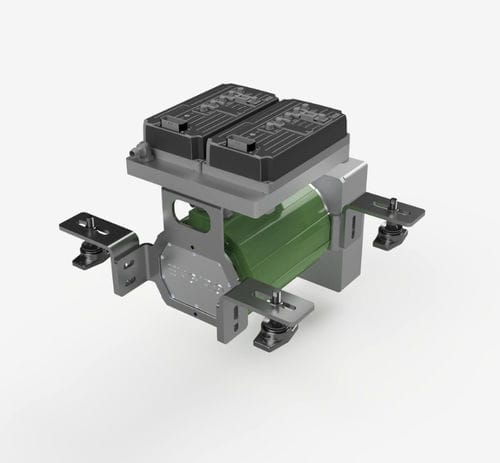

Inboard engine G22
electricboating

inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
electric
Market
boating
Power

22 kW
(29.9 hp)

Engine speed

1,290 rpm
(8,105 rad.min-1)

Weight

165 lb
(75 kg)

Description

Our G22 Motor System is compatible with standard shaft configuration vessels and made for easy installation without compromising on durability or performance. This model replaces diesel engines up to 60HP. Includes 316 stainless steel frame construction, single stage gear reduction, adjustable motor mounts, informative high quality display and distribution unit. Additionally, the dual controllers have a cooling plate installed to connect the motor and controllers to the supplied cooling unit. DETAILS > 170nm torque > Single stage gear reduction 1.5:1 > Stainless steel frame > Cooling system for motor and controllers > Adjustable motor mount feet >Output shaft coupling INCLUDES > Display > Distribution unit > Livorsi throttle > Wiring harness > Key switch > Cooling unit
