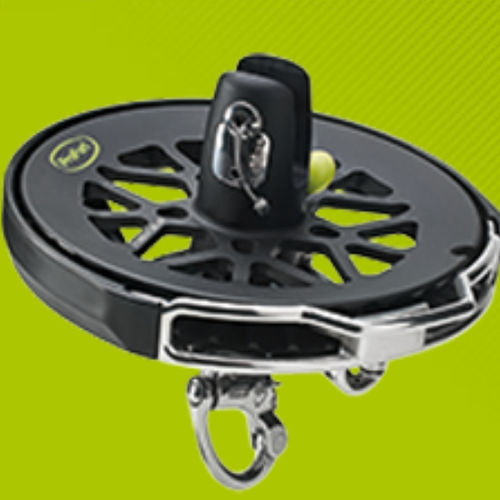

Sailboat furling system NEXe 4.0

0-5 T working load

The new version of the Nex furler is now available with many innovations and technological improvements. These innovations, resulting from our expertise gained since the launch of the first version of the NEX in 2010 will bring you even more performance, safety and comfort when sailing. NEX 4.0 is delivered on standard with clevis pin snap shackle and HR D shackle. Why choose a flying sailf furler? • Performance: Speed of furling, weight and optimized footprint • Comfort and safety during furling/unfurling operations FurlAssist (pawl function ), ease of furling • Ease of use: easy installation, fast and intuitive sail trimming • Reliable, proven and maintenance-free technology • Wide range of end fittings for better adaptation to your deck layout • Product with modern design • 3-year international warranty Technical description Model : - With spool Type of sails : - for light sails (gennaker, code zero) and heavy sails (solent, staysail...) Lower terminal : - Clevis snap shackle Upper terminal : - HR D shackle Continuous line Ø : - 10mm (25/64'') Weight / spool : - 1.490 Kg - 3.28 Lbs Weight / swivel : - 0,470 Kg - 1.036 Lbs Height / drum mechanism : - 115 mm - 4 17/32' inch Drum diameter : - 220 mm - 8 21/32'' inch Height / swivel : - 82.7 mm - 3 1/4'' inch Width / swivel : - 50 mm - 1 31/32'' inch Furling line : - No delivered
