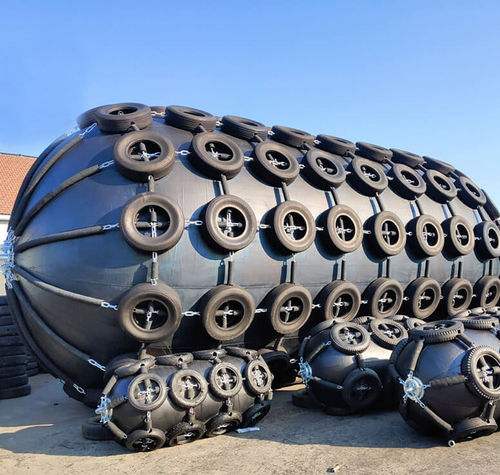

Boat fender

piercylindricalpneumatic

rubber fenders,Pneumatic rubber fenders,marine rubber fender,marine fenders Size Tolearance: ±5% Executive standard： K50/80 ISO17357-1-2014 1.Specification: Pneumatic Rubber Fender：1500 x 3000 50kPa Item:Pneumatic Fender Body Dia:1500mm Length:3000mm Initial Presure:50kPa Performance at 60% compression Energy Absorption:153kN-m Force Reaction:579kN Chain Tyre Net:Truck Tyre Weight:485kgs Pneumatic Rubber Fender：2000 x 3500 50kPa Item:Pneumatic Fender Body Dia:2000mm Length:3500mm Initial Presure:50kPa Performance at 60% compression Energy Absorption:308kN-m Force Reaction:875kN Chain Tyre Net:Truck Tyre Weight:885kgs *Tolerances:±5% Standard:ISO17357-1-2014 2.Fender Type: 2.1 By initial pressure:50kpa 2.2 By Chain-Tyre Net:Net type 3.Design and Manufacturing: 3.1Fender Body Wall Structure 3.2 Working conditions (1)Resistant media:sea water (2)Environmental temperature:-30℃～70℃ 4.Hydro-static Pressure Test The hydro-static pressure test shall be performed for 10 minutes at the hydro-static pressure shown as"test pressure at 0% deflection"below and there shall be no leakage of water and no defects during the test. 5.Warranty Warranty is 12 months.Design life is 6-12 years.In case of quality issues during warranty,the supplier is responsible to repair or exchange.After-sales service will be executed in time. 6.Certification Mill Inspection certification and Certification of Conformity will be provided at the delivery of the fenders.Third party'certification such as CCS,BV,ABS are available at buyer's request and cost.
