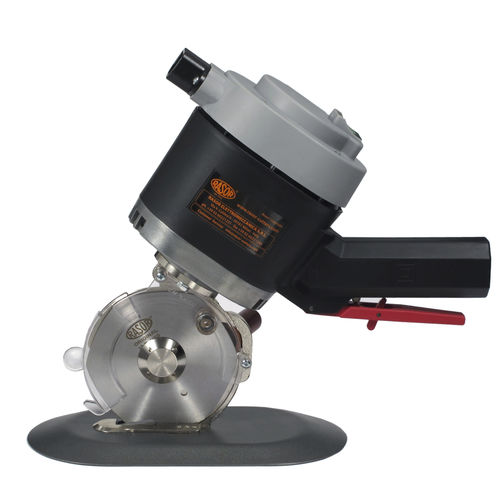

Rotary-knife cutting machine SW100

electrictextilefor shipyards

For over 30 years within the market, SW100 is the most efficient and popular bench cutting machine in textile and technical fabrics fields. It reached the highest level of technology and safety and can grant power and easy handling due to its weigh of only 3 kilos. The combination bbltween blade and counterblade make the cut to be sharp and precise without any rag grinding. The 90Watt balanced and silenced motor combined with high resistance bronze/steel gear couplings create a long lasting stability. The 6-edge 100mm diameter knife allows to cut any kind of fabric up to 35mm thickness. The aluminium cutter base with rolls is Teflon® coated to be friction proof and grant an easy feed of the fabric with no efforts. The push button sharpening stone allow the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The low maintenance and low operation cost make surely SW100 to be the best cutting machine suitable for any application in textile and technical fabrics fields. SPECIFICATIONS Blade diameter - 100 mm (4″), with hard metal counterblade Blade descr. - 10EHSS, 6-edges, HSS steel Blade speed - 850 r.p.m. Cutting ability - 35 mm (1.4″) Power - singlephase – 90 W Max absorption - 2 A, with protection fuse Net weight (with power supply cord) - 2950 g Total weight (with packaging) - 4650 g Electric cable length - 1.5 mt (with no plug) Minimum brightness for working operations - 200 LUX Vibrations at start up - < 2.5 m/sec 2 Temperature range - 0 – 55 C Umidity range - 10 – 95% without condensate SAFETY Double safety start-up system device Main power switch with Led indicator Heigh-adjustable trasparent fore blade protection Double electric insulation
