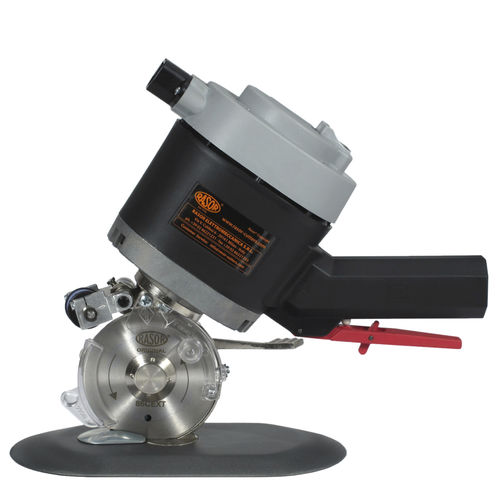

Rotary-knife cutting machine - D86P2 - Rasor Elettromeccanica - electric / textile / leather
Rotary-knife cutting machine - D86P2 - Rasor Elettromeccanica - electric / textile / leather
Rotary-knife cutting machine - D86P2 - Rasor Elettromeccanica - electric / textile / leather - image - 2
Rotary-knife cutting machine - D86P2 - Rasor Elettromeccanica - electric / textile / leather - image - 3
Rotary-knife cutting machine - D86P2 - Rasor Elettromeccanica - electric / textile / leather - image - 4
Add to favorites
Compare this product


Characteristics

Type
rotary-knife
Power source
electric
Cut material
textile, leather
Application domain
for shipyards

Description

D86P2 is the smallest model in Rasor range of bench cutting machine with a widia counterblade. It is a powerful and easy-handling cutting machine which weigh less than 3 kilos. The 5-edge knife assure a sharp and precise cut without rag grinding. The diameter of the knife being only 86mm allows an ease curve trimming and thin sections. The new semiautomatic stone sharpening system allows the sharpening of the knife edge to be done in only 10 seconds without removing the knife. The aluminium base with rolls is Teflon® coated to be friction proof and to grant an easy feed with no efforts. D86P2 is widely applied in textile, technical fabrics and in the leather and carpets industries. The few maintenance and low operation cost make D86P2 to be the best cutting solution for any of your application. SPECIFICATIONS Blade diameter - 86 mm (3.4″), with hard metal counterblade Blade descr. - 86PHSS, 5-edges, HSS steel Blade speed - 850 r.p.m. Cutting ability - 25 mm (1″) Power - singlephase – 90 W Max absorption - 2 A, with protection fuse Net weight (with power supply cord) - 2900 g Total weight (with packaging) - 4600 g Electric cable length - 1.5 mt (with no plug) Minimum brightness for working operations - 200 LUX Vibrations at start up - < 2.5 m/sec 2 Temperature range - 0 – 55 C Umidity range - 10 – 95% without condensate SAFETY Double safety start-up system device Main power switch with Led indicator Heigh-adjustable trasparent fore blade protection Fixed trasparent back blade protection 2 A cut-off fuse Double electric insulation

VIDEO
