Rotary-knife cutting machine SW12
electrictextilefor shipyards

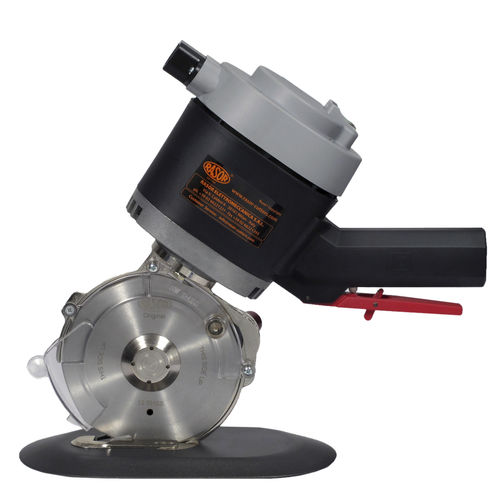

Rotary-knife cutting machine - SW12 - Rasor Elettromeccanica - electric / textile / for shipyards
Rotary-knife cutting machine - SW12 - Rasor Elettromeccanica - electric / textile / for shipyards
Rotary-knife cutting machine - SW12 - Rasor Elettromeccanica - electric / textile / for shipyards - image - 2
Rotary-knife cutting machine - SW12 - Rasor Elettromeccanica - electric / textile / for shipyards - image - 3
Rotary-knife cutting machine - SW12 - Rasor Elettromeccanica - electric / textile / for shipyards - image - 4
Add to favorites
Compare this product


Characteristics

Type
rotary-knife
Power source
electric
Cut material
textile
Application domain
for shipyards

Description

SW12 is the biggest Rasor bench cutting machine. For over 30 years within the market, the model SW12 reached the highest level in technology and safety and still can collect a big success in the high thickness cutting application. Its 120mm diameter knife allows the cut of fabrics up to 50mm thickness. The powerful 180Watt motor combined with a strong bronze/steel coupling gears create high torque plus a high blade speed of 850 rpm. SW12 is widely applied in textile or technical fabrics fields and it is especially suitable to cut high thickness material like mattress, foams and natural fibers in many layers. The new push button sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The aluminium cutting base with rolls is Teflon® coated to allow the easy feed of the machine and the reduction of the friction between the platform and the material. Model SW12 is definitely the best professional bench cutting machine for high thickness. SPECIFICATIONS Blade diameter - 120 mm (4.7″), with hard metal counterblade Blade descr. - 12SHSS, 8-edges, HSS steel Blade speed - 850 r.p.m. Cutting ability - 50 mm (2″) Power - singlephase – 180 W Max absorption - 2.5 A, with protection fuse Net weight (with power supply cord) - 4500 g Total weight (with packaging) - 6200 g Electric cable length - 1.5 mt (with no plug) Minimum brightness for working operations - 200 LUX Vibrations at start up - < 2.5 m/sec 2 Temperature range - 0 – 55 C Umidity range - 10 – 95% without condensate Double safety start-up system device Main power switch with Led indicator Heigh-adjustable trasparent fore blade protection Fixed trasparent back blade protection
