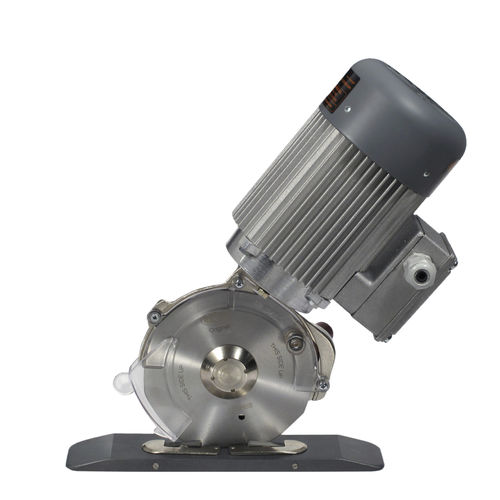

Rotary-knife cutting machine GRT12DT

electricfabricplastic

Model GRT12DT is a three-phase cutting unit suitable to cut high thickness in the technical fabric and composite material fields. Thanks to the double carbide counter-blade GRT12DT is able to cut on both directions (through an inverter). This peculiarity allows to save one run and so time in cross-cut process. The three-phase induction motor is balanced and noiseless. It does not need any maintenance so to be easily used for 24 hours-a-day production process. This type of motor together with bronze/steel couplings give the cutting unit to be reliable and resistance in life. The 8-edges 120mm knife allows a cutting thickness up to 50 mm even for multiple layers. High torque combined with the slow RPM of the knife allow to cut even rubber materials and plastic based material in the field of carpets and industrial flooring. The push button sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The aluminium base is Teflon® coated to reduce friction with the material and can be installed on sliding rails within a small space. GRT12DT is especially suitable for the transversal cut and it arranged with an anchor flange to be easily adjusted on fixed or automated hanger. The powerful and bi-directional cut make GRT12DT the perfect solution for the most complicate O.E.M application. SPECIFICATIONS Blade diameter - 120 mm (4.7″), with double hard metal counterblade Blade descr. - 12SHSS, 8-edges, HSS steel Blade speed - 400 r.p.m. Cutting ability - 50 mm (2″), bidirectional Motor - 3-phases asynchronous 380/400* V, 50 Hz Consumption - 0.52 A Protection - IP20 – CL F Net weight (with power supply cord) - 4590 g
