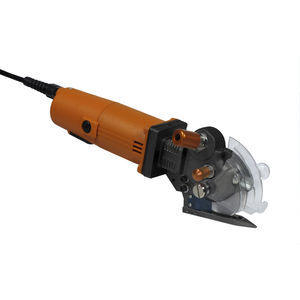

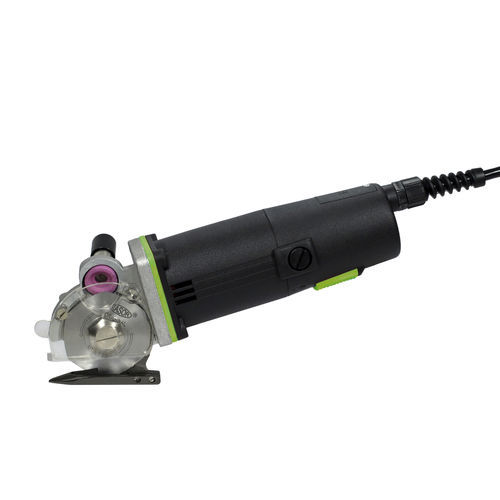

Rotary-knife cutting machine DS504

electrictextileleather

For over 40years within the market, the model DS504 is the smallest, most powerful and professional electrical hand-held cutting machine Rasor have ever produced. The DS504 is the sixth upgrade in the DS series resulting in the 2019 model which reaches the highest level in technology and safety. It weighs only 950 grams and its ergonomic design combined with a 90Watt balanced and silenced motor make this model (DS504) a unique cutting tool essential in all fields. A Reinforced body and bronze/steel gear coupling create a high torque which allows the use of this electrical shear not only in textile field but also in technical fabrics or leather fields. Rpm are now 1900 for ultra fast cut. The maximum cutting thickness is 9mm and the new push button sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The new circuit board includes a glass fuse which can be easily replaced without disassembling the shear and the new strong and slim shaped foot allows to trim curve sections very easily. The new model DS504 is truly a novel concentration of power and lightness in the field of professional cutting tools. Blade diameter - 50 mm (1.96″), with hard metal counterblade Blade descr. - 503EEXT, 6-edges, EXTRA steel Blade Speed - 1900 r.p.m. Cutting ability - 9 mm (0,35″) Power - singlephase – 220 V 50/60 Hz – 90 W90 W Max absorption - 1 A, with fuse protection Net weight (with power supply cord) - 950 g Total weight (with packaging) - 1570 g Electric cable length - 1.5 mt (extensible) Minimum brightness for working operations - 200 LUX Vibrations at start up - < 2.5 m/sec 2 Umidity range - 10 – 95% without condensate
