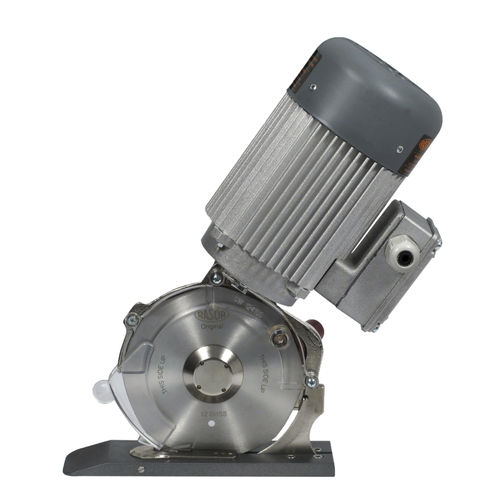

Rotary-knife cutting machine GRT12M

electricfabricplastic

Model GRT12M is a three-phase cutting unit suitable to cut high thickness in the technical fabrics and composite materials. Launched on the market only a couple of months ago GRT12M gives its excellency to the new geometry of the motor housing of Monster series. The difference between GRT12M and the other Rasor cutting units is given by its motor housing held by a central foot fitted behind the blade in central position. This system spreads the shearing stress and the necessary stress to move the machine through the fabrics on both sides of the cutter and cut is so done perfectly straight and smooth. The knife is half-free on both sides to avoid winding problems even with tough fibers. This is why GRT12M is especially suitable to cut composite materials like glass fiber, carbon fiber and kevlar. The three-phase induction motor is balanced and noiseless. It does not need any maintenance so to be easily used during the production process on 24 hours-a-day. This type of motor together with bronze/steel couplings give the cutting unit to be reliable and resistance in life. The 8-edges 120 mm knife allows a cutting thickness up to 50 mm even for multiple layers. High torque combined with the slow RPM of the knife allow to cut even rubber materials and plastic based material in the field of carpets and industrial flooring. The push button sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The aluminium base is Teflon® coated to reduce friction with the material and can be installed on sliding rails within a small space.
