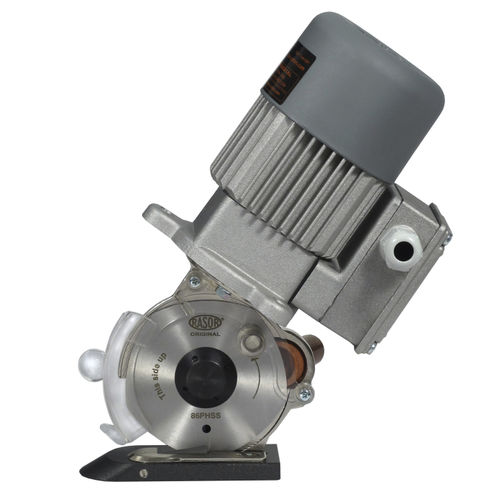

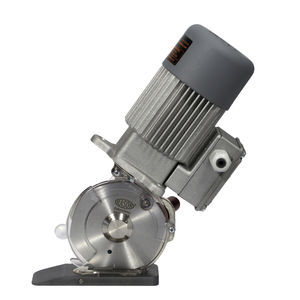

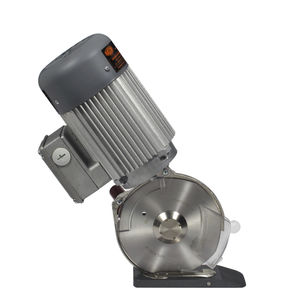

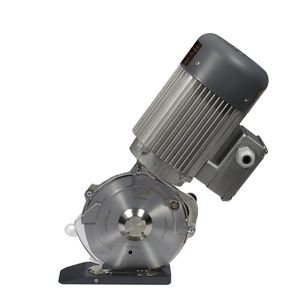

Rotary-knife cutting machine GRT-MINI

electrictextileleather

Model GRT-MINI is the smallest three-phase cutting unit with carbide counter-blade. For many years within the market it is installed on the main tentering machines. GRT-MINI is powerfull, small and light (less than 3 Kg.). The 5-edges knife guarantee a clean cut without rag grinding. The new semi-utomatic sharpening stone allows the sharpening of the knife edge to be done in less than 10 secons without removing the knife. GRT-MINI is widely applied in textile, leather, light carpet or technical fabrics field. The three-phase induction motor is balanced and noiseless. This cutting unit does not need any maintenance so to be easily used during the production process on 24 hours-a-day. It is especially suitable for the transversal cut and it arranged with an anchor flange to be easily adjusted on fixed or automated hanger. The new Teflon® coated base is miniatured so that can be installed on sliding rails within a small space. The minimun maintenance and the minimun handling costs make GRT-MINI the cheap and reliable cutting solution for any O.E.M. application. SPECIFICATIONS Blade diameter - 86 mm (3.4″), with hard metal counterblade Blade descr. - 86PHSS, 5-edges, HSS steel Blade speed - 550 r.p.m. Cutting ability - 25 mm (1″) Motor - 3-phases asynchronous 380/400* V, 50 Hz Power - 55 W Consumption - 0.3 A Protection - IP20 – CL F Net weight (with power supply cord) - 2650 g Total weight (with packaging) - 4750 g Electric cable length - 1.5 mt (with no plug) Minimum brightness for working operations - 200 LUX Vibrations at start up - < 2.5 m/sec 2 Umidity range - 10 – 95% without condensate * This model can be set up at 3-phase 220 V CLF – IP20 electric insulation
