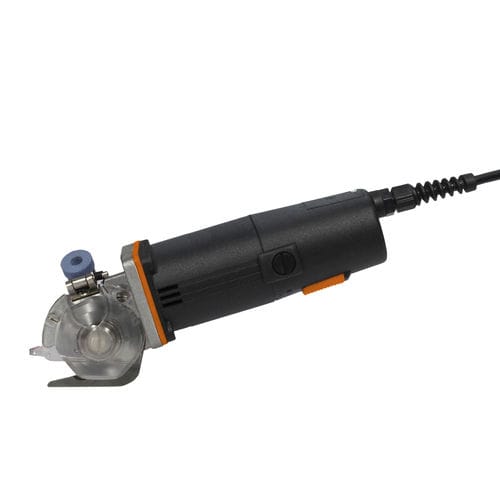

Rotary-knife cutting machine DS503MT
electrictextileplastic

Rotary-knife cutting machine - DS503MT - Rasor Elettromeccanica - electric / textile / plastic
Rotary-knife cutting machine - DS503MT - Rasor Elettromeccanica - electric / textile / plastic
Rotary-knife cutting machine - DS503MT - Rasor Elettromeccanica - electric / textile / plastic - image - 2
Rotary-knife cutting machine - DS503MT - Rasor Elettromeccanica - electric / textile / plastic - image - 3
Rotary-knife cutting machine - DS503MT - Rasor Elettromeccanica - electric / textile / plastic - image - 4
Rotary-knife cutting machine - DS503MT - Rasor Elettromeccanica - electric / textile / plastic - image - 5
Rotary-knife cutting machine - DS503MT - Rasor Elettromeccanica - electric / textile / plastic - image - 6
Add to favorites
Compare this product


Characteristics

Type
rotary-knife
Power source
electric
Cut material
textile, plastic, leather
Application domain
for shipyards

Description

DS503MT is the new electrical hand-held cutting machine designed for trimming the edges. The new slim shaped foot is welded with a widia counterblade to reduce the overall dimension of the shear. With DS503MT is therefore possible to trim straight or curved sections of material with high precision. DS503MT is well used for trimming textile and leather in furnishing field (chairs, sofa and armchairs) while especially used to cut away the extra-waste material on mould for plastic and glass fiber. It weighs only 950 grams and its ergonomic design combined with a 55Watt balanced and silenced motor make this model (DS503MT) a unique cutting tool very easy to be used. The maximum cutting thickness is 8mm and the new installed sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The new circuit board includes a glass fuse which can be easily replaced without disassembling the shear. Blade diameter - 50 mm(1.96″), with welded hard metal counterblade Blade descr. - 50SEXT, 7-edges, EXTRA steel Blade speed - 1500 r.p.m. Cutting ability - 9 mm (0.35″) Power - singlephase – 55 W Max absorption - 1 A, with protection fuse Net weight (with power supply cord) - 950 g Total weight (with packaging) - 1570 g Electric cable lenght - 1.5 mt (extensible) Minimum brightness for working operations - 200 LUX Vibrations at start up - < 2.5 m/sec 2 Temperature range - 0 – 55 C Umidity range - 10 – 95% without condensate
