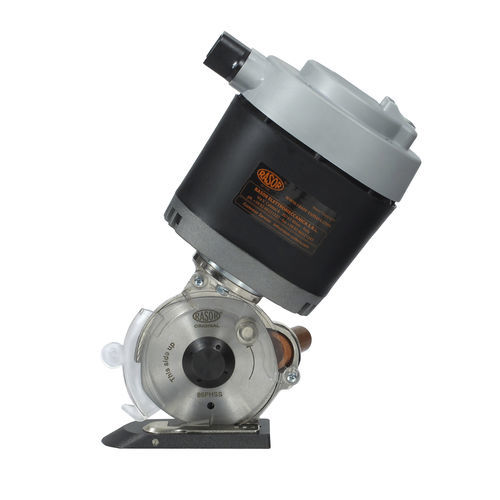

Rotary-knife cutting machine D86PS2

electricsingle-phasetextile

D86PS2 is the smallest single-phase cutting unit with a widia counterblade. For over 20 years within the market, it is installed on the most popular tender models. D86PS2 weighs less than 3 Kilos within a limited overall dimensions. The 5-edge knife assure a sharp and precise cut without rag grinding. The new semiautomatic stone sharpening system allows the sharpening of the knife edge to be done in only 10 seconds without removing the knife. This model (D86PS2) is widely applied in textile field and in leather and light carpets industries. It is especially suitable for the transversal cut due to its anchor flange which allows an easy fitting on fixed or automatic stirrup. The new mini aluminium Teflon® coated base of this cutting unit allows its installation on sliding rails within a short space. The few maintenance and low operation cost make D86PS2 to be the cheapest and most reliable cutting solution in any of your O.E.M. application. PECIFICATIONS Blade diameter - 86 mm (3.4″). with hard metal counterblade Blade descr. - 86PHSS, 5-edges, HSS steel Blade speed - 850 r.p.m. Cutting ability - 25 mm (1″) Power - singlephase – 90 W Max absorption - 2 A Net weight (with power supply cord) - 2900 g Total weight (with packaging) - 4600 g Electric cable length - 1.5 mt (with no plug) Minimum brightness for working operations - 200 LUX Vibrations at start up - < 2.5 m/sec 2 Temperature range - 0 – 55 C Umidity range - 10 – 95% without condensate SAFETY Main power switch with Led indicator Heigh-adjustable trasparent fore blade protection Fixed trasparent back blade protection Double electric insulation
