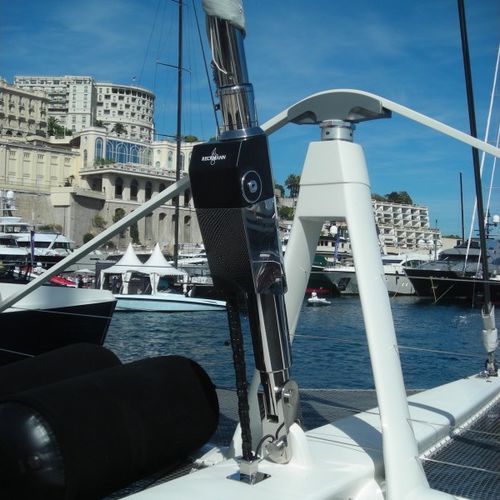

Sailboat furler RF90 series

headsailhydraulicabove deck

The RF90 is a hydraulic high performance reefing system for foresails built to be virtually maintenance free and with superior gear technology these systems offer maximum performance and longevity. The integration of spiral-mesh gearing, sophisticated bearing design and a self-braking worm gear, result in a quiet and smooth running system, which meet the highest industry standards. All systems in this series are equipped with an easy to operate length adjuster for optimal trimming of mast and sail. The hydraulic supported length adjusters are available starting with model RF90-4. Features] Emergency Manual Backup The unique manual drive ensures the greatest possible level of security. By simply inserting a standard winch handle, the electric drive will disconnect and switch to manual operation. Due to this special gear mechanism that prevents sail forces from transferring to the winch handle, the reefing system can be safely and easily operated, even when in manual mode. Tack Swivel Ring Bearings The furler tack swivel rings have a double axial bearing. This means that even heavy loads can be carried reliably. In order to avoid point loading on the bearings, loads are distributed using distribution plates over the whole bearing. Integrated Length Adjustment The integrated length adjustment is easy to use and works even when the sail is bent. This means that rigs and sails can be trimmed exactly. Optional Hydraulic Stay Length Adjustment (RT) RF-90 series furling systems are optionally available with hydraulic length adjustment for adjusting forestay lengths.
