APPLICATION

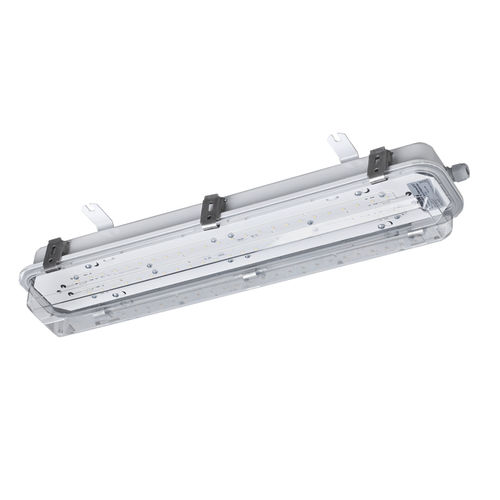

Dustproof and watertight luminaire for high endurance LED componets. Designed for cold stores, open ship decks and other areas with low temperatures occurrence on the ships or industrial facilities.
TECHNICAL DATA
Protection degree: IP 67
Protection class: I
Power factor: ≥ 0,85
Ambient temperature: from -30°C to +40°C
MOUNTING
Two mounting holes Ø 9mm or dedicated bracket
CONSTRUCTION DETAILS
Housing: pressed zinc coated steel sheet white powder painted
Diffuser:UV stabilized strenghtened polycarbonate
Mounting plate: zinc coated steel sheet white powder painted
OPTIONS
Stainless steel housing
Cable glands for armoured cables
ADDITIONAL EQUIPMENT
Bracket for ceiling or wall installation and for cable tracks
