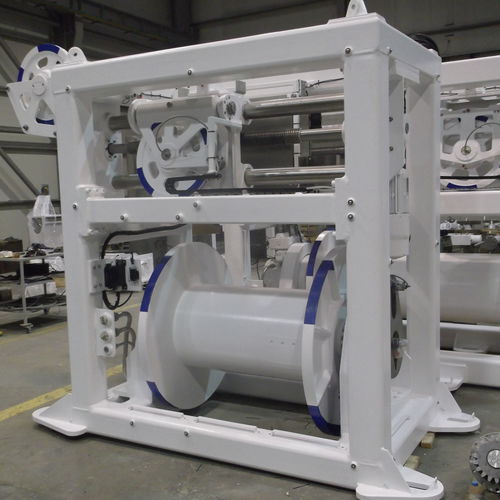

Ship winch MULTIFUNCTIONAL

oceanographic researchhydraulic drive

2.5Te - 3000m Datasheet Weight without cable 3200 Kg Cable diameter 11.43 mm Capacity 3000 m Line speed - First Layer 50 m/min Line speed - Top Layer 90 m/min WLL - First Layer 2545 Kg WLL - Top Layer 1500 Kg Brake Minimum 1.5 WLL - First Layer 3900 Kg Brake Minimum 1.5 WLL - Top Layer 2250 Kg Winch Hydraulic Drive Supply Required 200 bar 130 l/min per winch drum Level Wind Electrical Motor Supply Required 1.5 Kw IP56 IE3 380-440V-3 Ph- 50/60 Hz Local Proportional Control Bi-directionally proportional joystick Level wind Right Angled - Electrically automatic pulse driven level wind with manual adjustment Dimensions (LxWxH) Footprint 1260 x 2842 x 2207 mm 1260 x 2735 mm with twist lock option Slip ring Designed to accept Focal 180 or similar not within scope of supply Principle of Operation: The winch drum is driven directly from a Bonfiglioli gearbox, hydraulic motor and load valve combination. The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost or the control joystick is in its centre position. The non-drive side housings a bearing and a slipring. The 90 degree right angled Level wind electrically driven from the 1.5 kW SEW Electric gearmotor. The level wind is PLC controlled, is automatic with a manual override. The Level wind can be adjusted to accept a variety of cable diameters if required. HMI displays Line Speed, Line Load, Line Out and Line In with the provision of load monitoring with user selectable limits for line tensioning.
