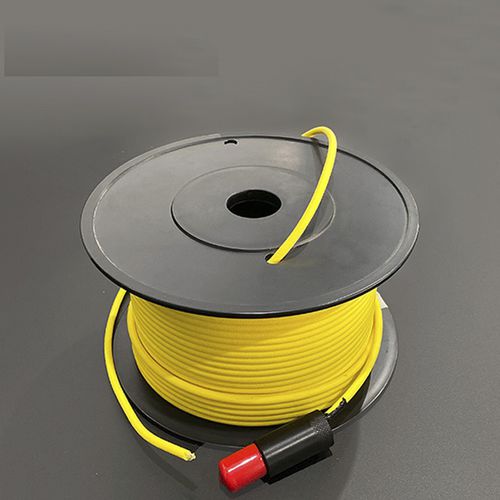

Electric cable YS-Cable-004

underwaterfor ROV

This zero-buoyancy cable is 2x26awg, one side has a 2-core watertight connector female( MCIL 2F), and the end cap is matched with a 2-core watertight connector male( MCBH 2M) Product Specification Conductor material: 17 tin-plated copper wires per 0.1 mm Insulation material: PE Insulation thickness: 0.3mm Insulation Outer Diameter: 1.0 ± 0.1mm Test voltage: 2000V/5min Rated voltage: 300/300V Ambient temperature range: – 25 80. Plastic properties: abrasion resistance, bending resistance, oil resistance, seawater resistance Characteristics of Copper Wire: Smooth and Round Tin-plated Copper Wire Tensile resistance: 1500N The outer diameter of the finished product: 4.5 ±0.2mm
