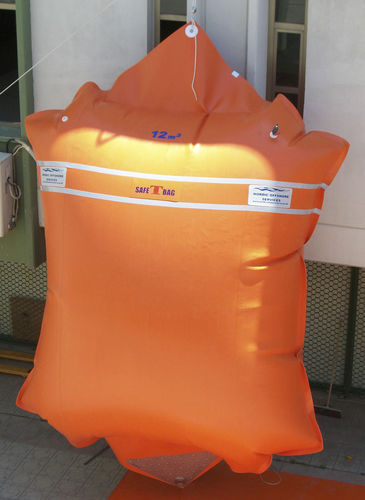

Underwater lifting buoy BB series

for terminalsfor commercial portsPVC

In comparison to solid buoys, Inflatable Buoy Bags are easier to be stored and transported. SafeTmade Buoy Bags are being produced in different capacities like 6,5 m3 and 8,5 m3. These buoy bags have a buoyancy of 6350 kg at sea level and can be hoisted easily. BB/66000 kg TECHNICAL DATA SLING MATERIAL POLYESTERSWL 13600 N/60 mm FABRIC21000 N/50mm kg FABRIC MATERIAL POLYESTERPES FABRIC TYPE OF COATINGPVC FABRIC MATERIAL TOTAL WEIGHT 1400 gr/m2 SWL 7000 N/50mm EMPTY WEIGHT84 kg VOLUME BUOYANCY AT SEA LEVEL6350 kg DIA1450 cm LENGTH DFL.5800 cm WIDTH DFL.2276 cm TEAR FORCE FOR THE EYELETS14000 kg Payload at salty water 6,350 kg app. BB/88000 kg TECHNICAL DATA SLING MATERIAL POLYESTERSWL 13600 N/60 mm FABRIC21000 N/50mm kg FABRIC MATERIAL POLYESTERPES FABRIC TYPE OF COATINGPVC FABRIC MATERIAL TOTAL WEIGHT 1400 gr/m2 SWL 7000 N/50mm EMPTY WEIGHT120 kg VOLUME8,5 m BUOYANCY AT SEA LEVEL6350 kg DIA1600 cm LENGTH DFL.6100 cm WIDTH DFL.2510 cm TEAR FORCE FOR THE EYELETS14000 kg Payload at salty water 8,150 kg app.
